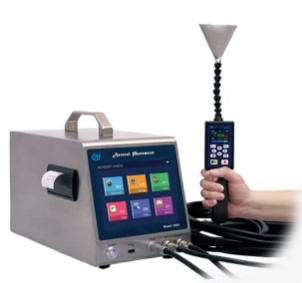

GTI Model 3991 Aerosol Photometer
Applications
Independent filter certifiers
Nuclear facilities
Pharmaceutical manufacturers
Medical facilities and cleanrooms
Biosafety cabinets and fume hoods
Key Features & Benefits
-8.4inch color touch screen (English & Chinese)
-Built in thermal printer and equipped with thermal printing paper for real-time printing
-The scanning probe has one-dimensional code scanning function, automatic data classification, and traceability
-Large storage capacity, capable of storing 100000 sets of data
-Built in lithium battery, which lasts for 4.5 hours
-Built in GMP Three-Level Privileged Management which is able to generate operation logs
-Built in low-power mode to reduce instrument power consumption without testing
|
Model
|
3991
|
|
Data Accuracy
|
0.0001~100.0% 8.4inch Touch LCD Screen
|
|
Dynamic Range
|
0.0001µg/L～600µg/L
|
|
Accuracy
|
1% of Readings（0.01~100%）
|
|
Repeatability
|
0.5% of Readings （0.01~100%）
|
|
Flow Control
|
1cfm （28.3L/min）±5%
|
|
Zero Building
|
Automatic or manually
|
|
Alarm Modes
|
Audible, visual and vibratory
|
|
Power-Saving Mode
|
Lower energy consumption
|
|
Reporting Modes
|
Continuous, Summary, Monitoring mode
|
|
Print
|
Built-in thermal printer
|
|
ID Encode
|
ID scanning, data classify and traceable.
|
|
Data Output
|
Storage, USB, Print; Logs can be traced and stored
|
|
Data Storage Capacity
|
100,000 Groups
|
|
Communication
|
USB is connected with PC continuous scanning testing is available.
|
|
GMP Three-Level Privileged Management
|
Contains three-level permission management, which can set identities and assign usage permissions; it can be done with Log Report
|
|
Language
|
English
|
|
Reagent Settings
|
PAO、DOP、Ondina、PolvethleneGlvcol.Corn Oil、MineralOil、Paraffin Oi, etc.
|
|
Sampling Port
|
Standard internal rectangular sampling port without unnecessary corners
|
|
Shell Material
|
SUS304 stainless steel
|
|
Temp. & Humidity
|
5～50°C (No condensation, no freezing); 5~95%RH
|
|
Storage Temp.
|
-20C~60°C (Relative humidity below 95%, no condensation)
|
|
Power
|
AC100~240V 50/60Hz or lithium battery (optional with built-in lithium battery pack)
|
|
Dimension/Weight
|
Approx.220x260 (handle 300) x 390mm (W x H x L) 11.1kg (photometer) probe and accessories 1kg
|
|
Reference complied
|
NSF49、IEST、ISO14644、EN61010-1:2010、EN61326:2006
|
|
What’s included
|
Photometer, scanning probe, sampling air pipe, manual, certification, power cord, carrying case
|
|
Accessories
|
Lithium battery (built-in), AC/DC, circular sampling port, square sampling port
|
