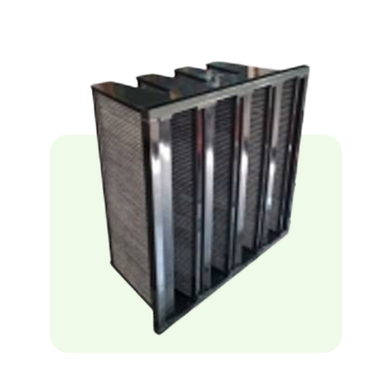

MaxiPure - Grand

Airmax "MaxiPure - Grand" is one of our gas phase absorber product. Media consists of a very fine granular carbon (90% activity, 20x50 mesh) with 600 grams per square meter. The granules are bonded to a synthetic fiber substrate which is sealed within a sleeve of spun bonded synthetic scrim to prevent carbon dusting. No post filter is needed to contain particle shedding often associated with carbon filters.

Chemical filtration for continuous removal of low level concentrations of

Airborne Molecular Contamination (AMC)

Less than 500 parts per billion (ppb).

ACTIVATED CARBON : Coconut Shell Base

CARBON SIZE: 20X50 mesh

CTC Activity Rating : ＞90%

Iodine Absorption : min 1,300 mg/gm

Pleat number : 58 pleats/pack

Frame : ABS Frame with Single Header

BASE WEIGHT: 600g/m2 carbon contentMedia Area : 56 Sq.Ft.

PRESSURE DROP : 80 Pa

FILTRATION EFFICIENCY : F5ADSORBENCY EFFICIENCY : > 97%

*Highest first pass removal efficiency

* Highest carbon loading

* Highest activity carbon

* Lowest carbon shedding

* Low resistance
